CEMB C350

Heavy-Duty Video Diagnostic Wheel Balancer — Trucks, Buses & Cars

$16,499

Manufacturer suggested retail price | In our 16-county territory? Contact us for your account pricing.

Plus applicable tax.

CEMB Warranty2-year parts warranty | 1-year labor warranty

C350 vs C330: The C350 ($16,499) adds EMS Sonar (radial and lateral run-out measurement), HubMatch, and a video diagnostic display over the C330 ($14,399). These turn the C350 into a diagnostic tool as well as a balancer — identifying the root cause of the toughest vibration complaints, not just correcting imbalance. For shops that regularly encounter customer vibration issues on commercial vehicles, the $2,100 difference in the C350 earns its keep. View the C330 →

Lifting Spindle

EMS Sonar

LA Sonar + LR Sonar

HubMatch

Video Diagnostic

Up to 550 lbs.

Request a Quote Call or text: 231-357-2947

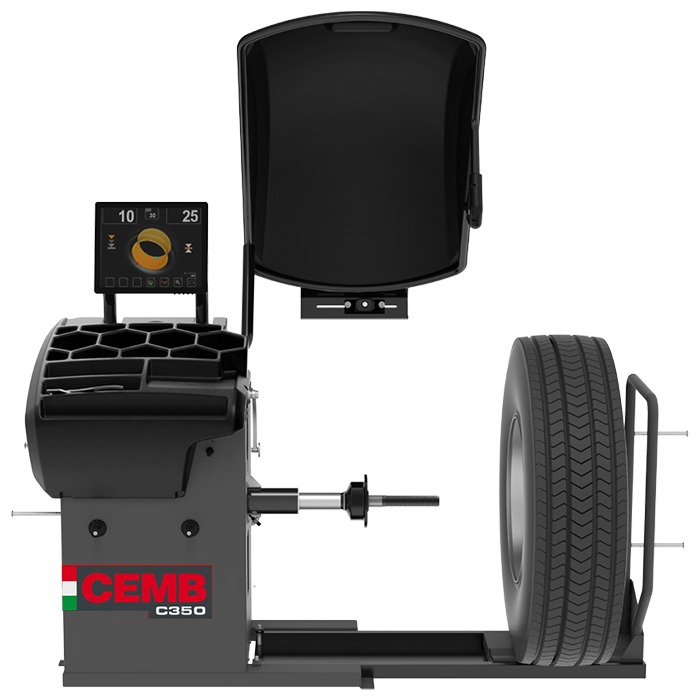

The CEMB C350 is the top-of-the-line heavy-duty wheel balancer in the CEMB lineup — a video diagnostic balancer that goes beyond standard balancing to measure radial and lateral tire run-out (eccentricity) during the normal balancing cycle. Designed for trucks, buses, SUVs, and passenger cars up to 550 lbs., the C350 combines an innovative lifting spindle system with LA Sonar, LR Sonar, EMS Sonar, HubMatch, and laser-guided weight positioning for the most complete diagnostic and balancing workflow available in this class. The next-generation replacement for the C218.

Key Features

Lifting spindle — lowers for easy loading of heavy commercial wheels, rises with wheel clamped; low-profile 2.3" sliding trolley included to reduce operator effort positioning large wheels
EMS Sonar — measures radial and lateral tire run-out (eccentricity) during normal balancing cycle; identifies the root cause of difficult vibration complaints
LA Sonar — automatic contactless wheel width measurement
LR Sonar — lateral run-out measurement
HubMatch® — guided on-car eccentricity cancellation for maximum vibration elimination
Video diagnostic display — visualizes diagnostic data for operator and customer
Laser line — accurate adhesive weight positioning
Electromagnetic brake — locks wheel at correct weight placement position
Extended automatic gauge — measures rims up to 32"
Innovative spindle shaft design — safer and better centering even with largest commercial wheels
Sturdy functional weight tray with optimized spacing
230V, 1 phase
Made in Italy

Technical Data

Specifications

Type	Fixed Shop — Video Diagnostic, Automatic
Power Supply	230V, 1 phase
Max Rim Diameter	30" (765 mm)
Gauge Measuring Range	Up to 32" rims
Rim Width Range	1.5" – 20" (40–510 mm)
Max Tire Diameter	54" (1,372–1,380 mm)
Max Wheel Weight	550 lbs. (250 kg)
Machine Weight	~507 lbs. (230 kg)
Sonar Systems	LA Sonar, LR Sonar, EMS Sonar
HubMatch	Yes
Display	Video diagnostic
Laser	Laser line weight positioning
Wheel Loading	Lifting spindle + 2.3" low-profile sliding trolley
Origin	Made in Italy
Warranty	2-year parts \| 1-year labor
